FIR Series Multipurpose Professional Speaker
Model: FIR-8
Coverage(-6dB).
Nominal directivity: 100° axial symmetry
Monitoring angle: 35°
Configuration:LF: 8-inch cone driver
HF: 1.7" Titanium Diaphragm Compression Driver
Nominal impedance: 8Ω
Frequency response: 55 Hz - 20 kHz (-10 dB), 60 Hz - 20 kHz (-6 dB), 70 Hz - 20 kHz (-3 dB)
Power Rated: 200W/AES;800W/PEAK
Maximum SPL: 129 dB
Acoustic Loading: Bass Reflex
Cabinet: high quality Russian birch
Connector. 4x4 points speakon
IP: IP43
Surface treatment: polyurea wear-resistant black paint
Dimensions(WxHxD):250x420x265mm
Weight: 15kg

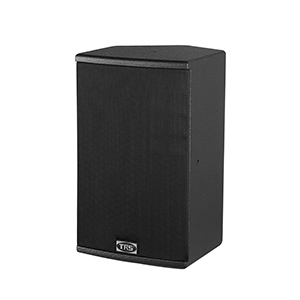

Model: FIR-12
Coverage (-6dB). - Vertical directivity: 60°/90° symmetry
Horizontal directivity: 40°/60° symmetrical
Monitoring angle. 35°/55°
Configuration:LF: 12-inch ferrite cone driver (customized in China)
HF: 3-inch diaphragm ferrite compression driver (18sound).
Nominal impedance: 8Ω
Frequency response: 50 Hz - 20 kHz (-10 dB), 55 Hz - 20 kHz (-6 dB), 60 Hz - 20 kHz (-3 dB)
Effective power handling (calculated using the average impedance measured over the available bandwidth
The average impedance measured over the bandwidth is calculated). Maximum sound pressure level: UPA-12/UPA-12W 138/136dB (peak level measured at 1 meter under free field conditions, using pink noise with crest).
Maximum SPL: UPA-12/UPA-12W 138/136dB
Acoustic Loading: Bass Reflex
Cabinet: high quality Russian birch size
Connector. 4×4 points speakon
IP: IP43
Surface treatment: polyurea wear-resistant black paint
Dimensions(WxHxD):360x620x320mm
Weight: 28kg

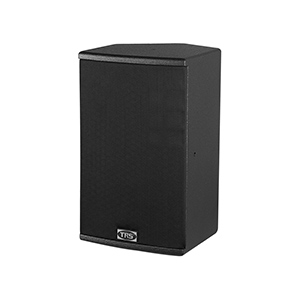

Model: FIR-15
Coverage (-6dB).
Vertical directivity: 60°/90° symmetrical
Horizontal directivity: 40°/60° symmetrical
Monitoring angle. 35°/55°
Configuration:LF: 15" ferrite cone driver (custom made in China).
HF: 3-inch diaphragm ferrite compression driver (18sound).
Nominal impedance: 8Ω
Available bandwidths: 50 Hz - 20 kHz (-10 dB), 55 Hz - 20 kHz (-6 dB), 60 Hz - 20 kHz (-3 dB)
Power Rated: 350 W/AES
Maximum SPL: UPA-15/UPA-15W 138/136dB
Acoustic Loading: Bass Reflex
Cabinet: High quality Russian birch
Connector. 4×4 points speakon
IP: IP43
Surface treatment: polyurea wear-resistant black paint
Dimensions(WxHxD):440x700x375mm
Weight: 31.8kg

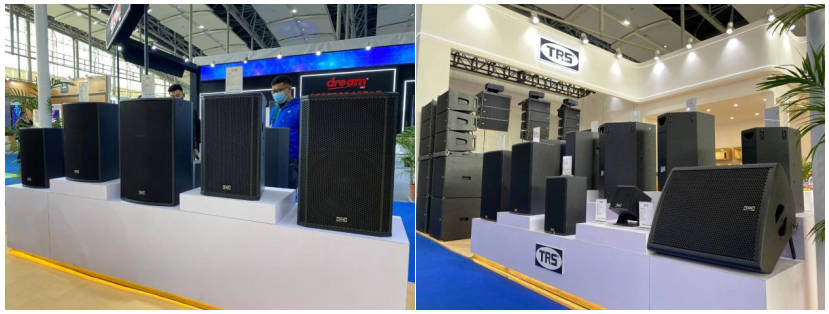

The FIR series professional speakers under the TRS brand have been highly praised and appreciated by customers for their excellent visual performance and precise capture of the product's outstanding style in the 2023 exhibition display pictures.
Its unique and sophisticated style, along with the front ventilation design, makes the sound cleaner and clearer, making it suitable for high-end KTV rooms or private clubs.
