Short Description:

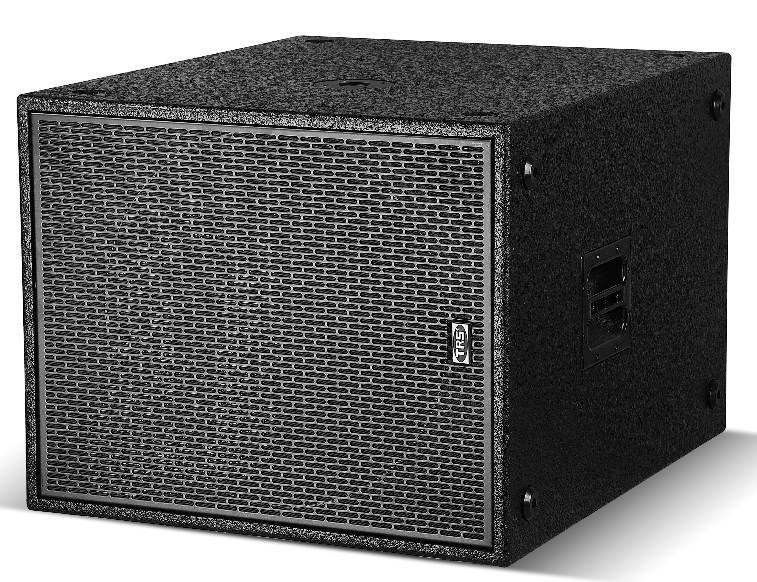

Product Model: MG-18S

Configuration: 1 x 460mm (18 inch) driver, 100 mm (4 inch) voice coil

Frequency Range: 38Hz - 200Hz

Rated Power: 900 W / 1800 W / 3600 W (Continuous / Music Signal / Peak)

Impedance: 8Ω

Sensitivity (1w@ 1m): 102.5 dB

Maximum Sound Pressure Level: Continuous 132 dB (peak 138 dB)

Cabinet Structure: 18mm birch plywood, with handles, appearance color

Input Connector: 2 x NL4 Neutrik Speakon

Pin Assignment: Low-frequency: 1+, 1-

Dimensions (WxHx D): 660×530×786mm

Net Weight: 50.6kg

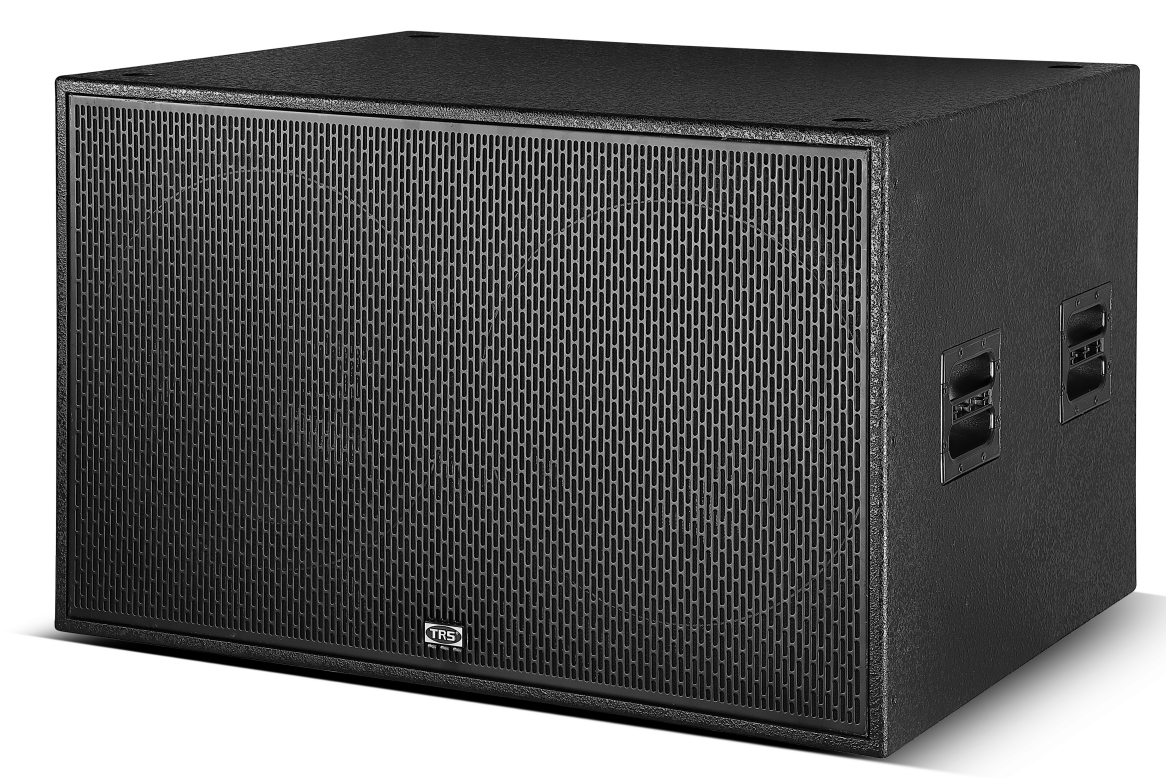

Product Model: MG-218S

Configuration: LF: 2 x 460mm (18-inch) drivers, 100 mm (4-inch) voice coil

Frequency Range: 34Hz - 200Hz

Rated Power: 1800 W / 3600 W / 7200 W (Continuous / Music Signal / Peak)

Impedance: 4Ω

Sensitivity: 103 dB

Maximum SPL: Continuous 135dB (peak 141 dB)

Cabinet Structure: 18mm Birch plywood

Input Connector: Parallel NL4 Neutrik Speakon

Pin Assignment: Low-frequency: 1+, 1-

Dimensions (W x H x D): 1042 x 662 x 786 mm

Net Weight: 90 kg
