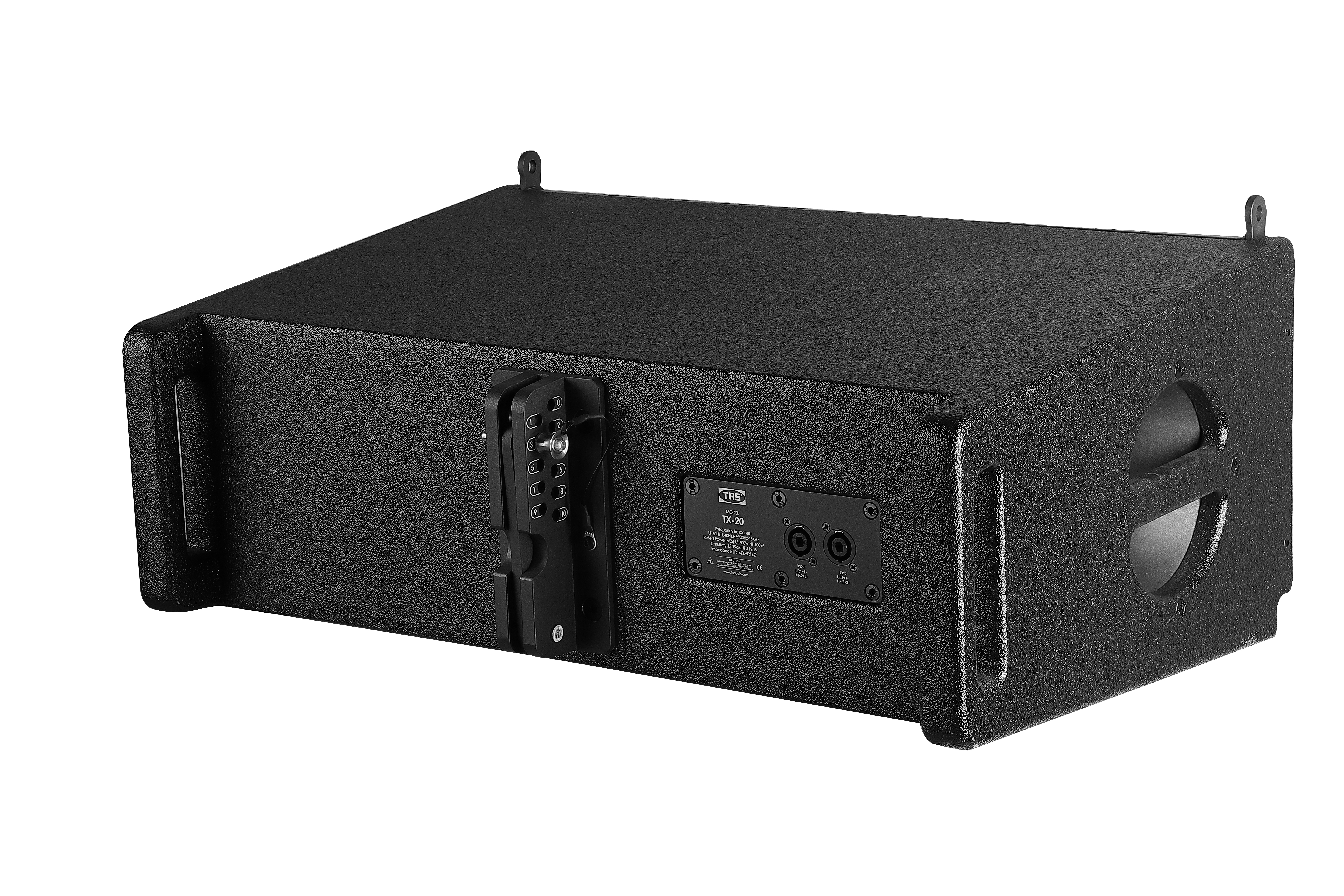

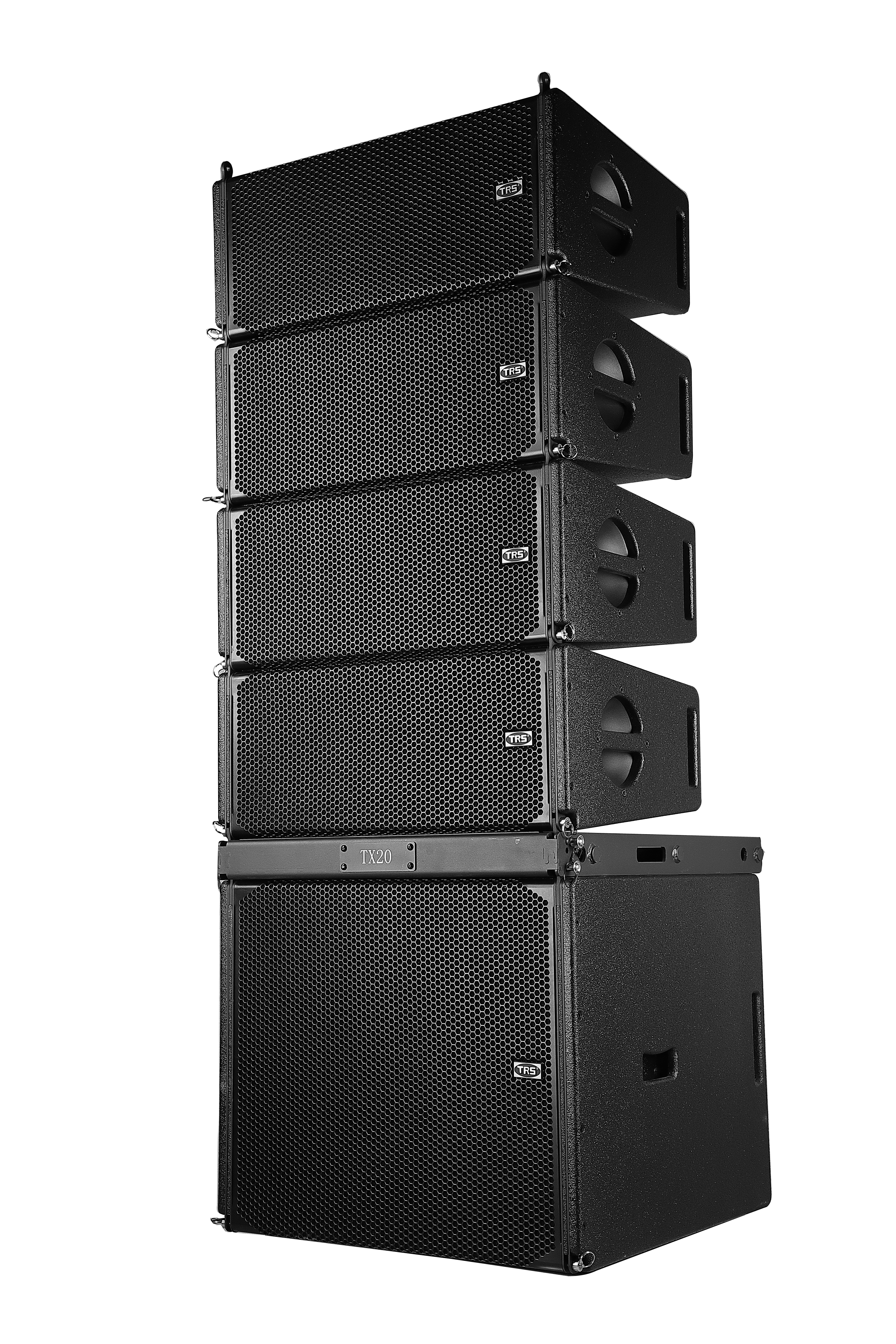

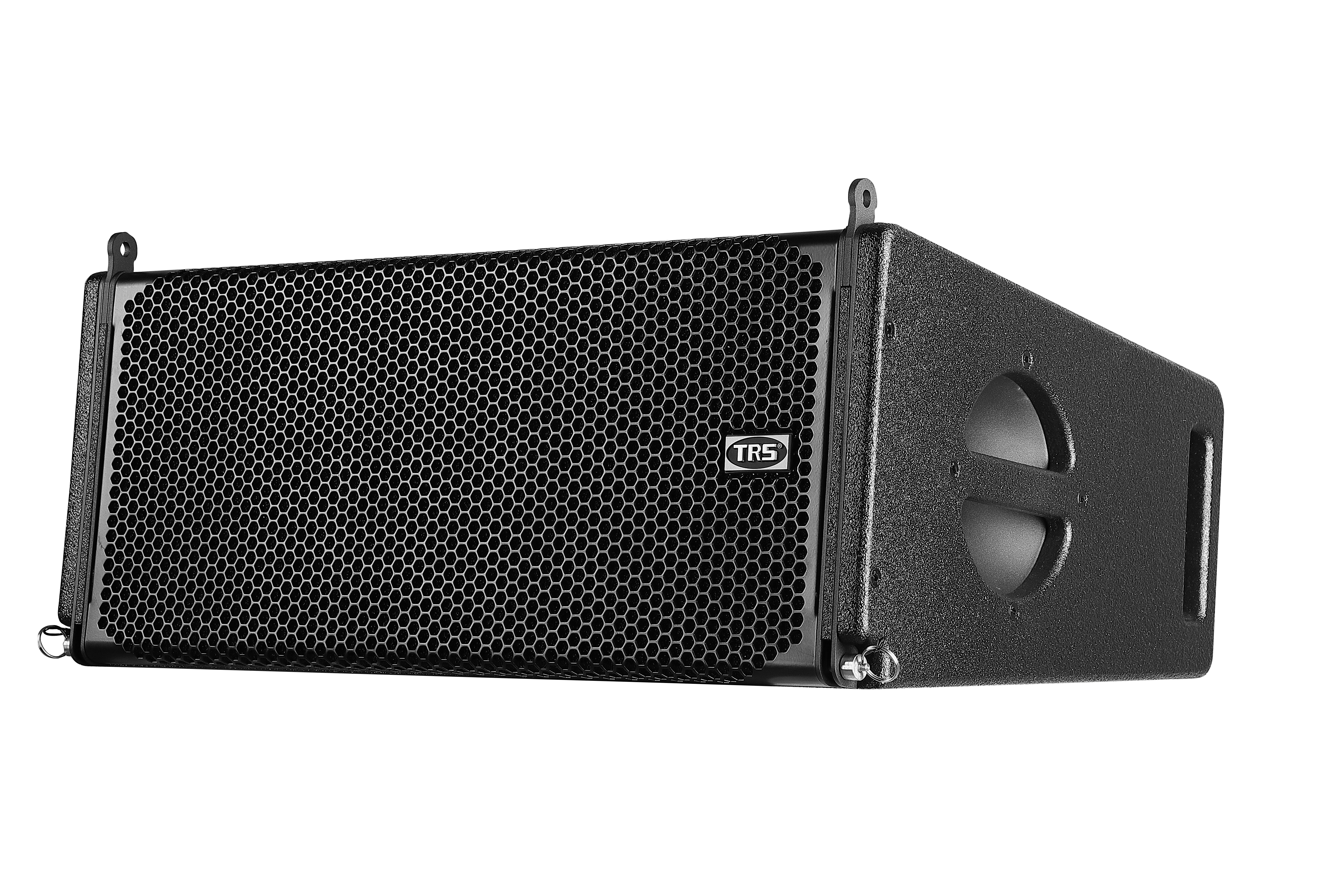

Dual 10-inch Line Array Speaker System
System features:
High power, ultra-low distortion.
Small size, easy to transport.
Multi-purpose installation design.
Perfect hanging method.
Easier installation.
Excellent mobile performance performance.
Application:
Small and medium-sized gathering places
Mobile and fixed AV systems
Center and side area sound supplement for medium-sized systems
Performing arts centers and multi-purpose halls
Distributed systems for theme parks and stadiums
Bars and clubs
Fixed installations, etc.
Specification:
Model: TX-20
System type: Dual 10-inch line array speakers
Configuration: LF: 2x10”(75mm voice coil) unit, HF: 1x3” (75mm voice coil) compression unit
Rated power: 600W
Frequency response: 60Hz-18KHz
Sensitivity: 99dB
Maximum sound pressure level: 134dB
Rated Impedance: 16Ω
Coverage (HxV): 110° x 15°
Input interface: 2 Neutrik 4-core sockets
Coating: black wear-resistant polyurea paint
Steel mesh: perforated steel mesh, with special mesh cotton on the inner layer
Angle increase: adjustable from 0° to 15°
Dimensions (WxHxD): 680x280x460mm
Weight: 33.8kg
Design Features:

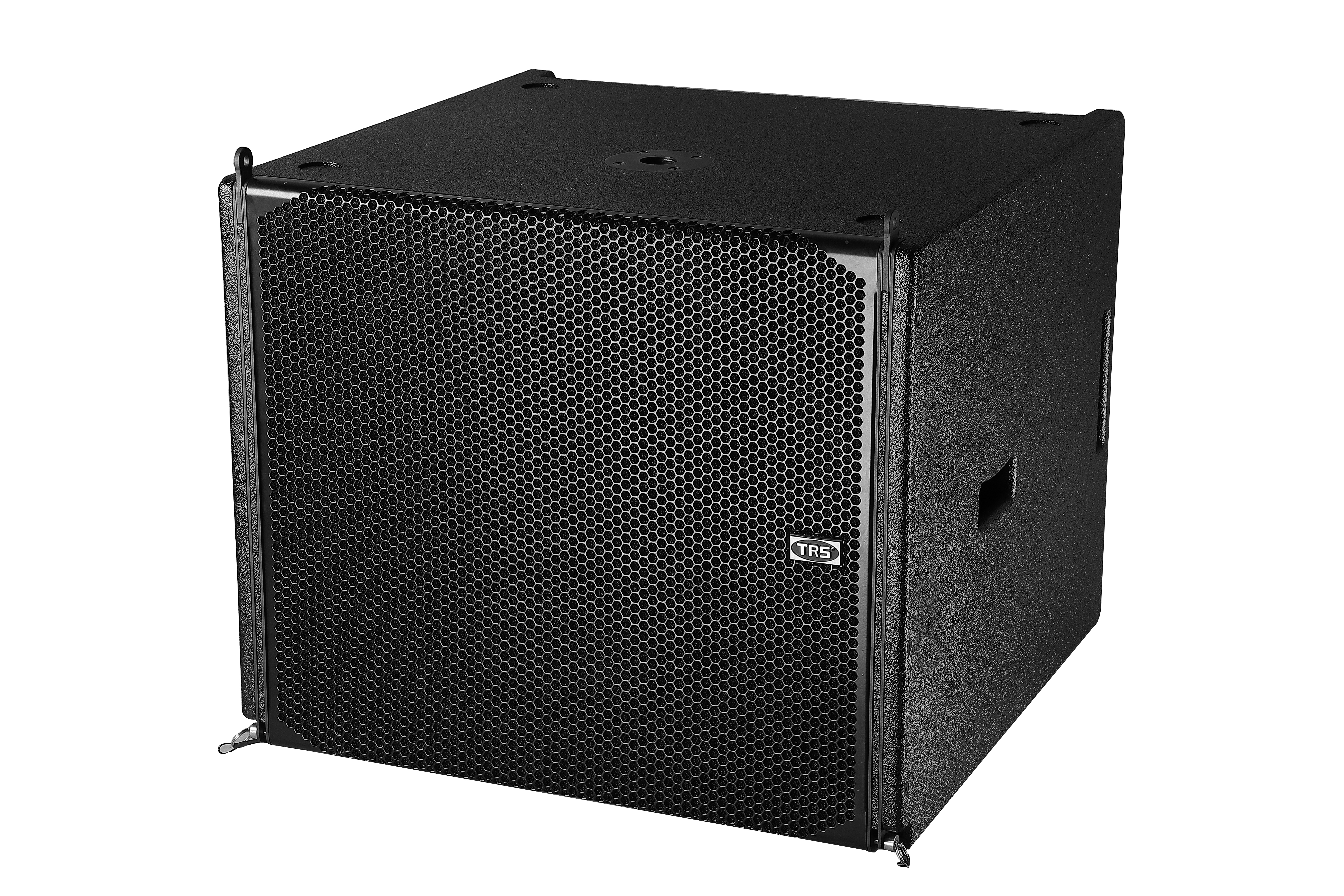

The TX-20B single 18-inch line array subwoofer is a high-performance, high-power, versatile and very compact cabinet design, providing a high-quality 18-inch (100mm voice coil) subwoofer. The cabinet is compact and has a well-designed multi-functional hanging system, which is easy to install and more convenient to flow, and has a strong sense of presence, excellent clarity and balance. The TX-20B cabinet is made of high-quality multi-layer plywood and the exterior is sprayed with a solid black polyurea paint to withstand the most demanding conditions. The speaker steel mesh is finished with a highly waterproof finished commercial grade powder coating.
System features:
※High power, ultra-low distortion.
※Comfortable and impactful sound quality.
※Compact cabinet and easy to operate.
※Perfect hanging method.
※Fixed installation and mobile use.
Application:
Small and medium-sized gathering places
Mobile and fixed AV systems
Center and side area sound reinforcement for medium-sized systems
Performing arts centers and multi-purpose halls
Distributed systems for theme parks and stadiums
Bars and clubs
Fixed installation, etc.
Specification:
Model: TX-20B
System type: Single 18-inch line array subwoofer
Configuration: 1*18” (100mm voice coil) ferrite unit
Rated power: 700W
Frequency response: 38Hz-200Hz
Sensitivity: 103dB
Maximum sound pressure level: 135dB
Rated Impedance: 8Ω
Input interface: 2 Neutrik 4-core sockets
Coating: black wear-resistant polyurea paint
Steel mesh: perforated steel mesh, with special mesh cotton on the inner layer
Dimensions (WxHxD): 680x560x670mm
Weight: 53kg
