●Ultra-light, one-person assembly design

●Small size, high sound pressure level

●Performance-level sound pressure and power

●Strong expand-ability, wide application range, support for multiple applications

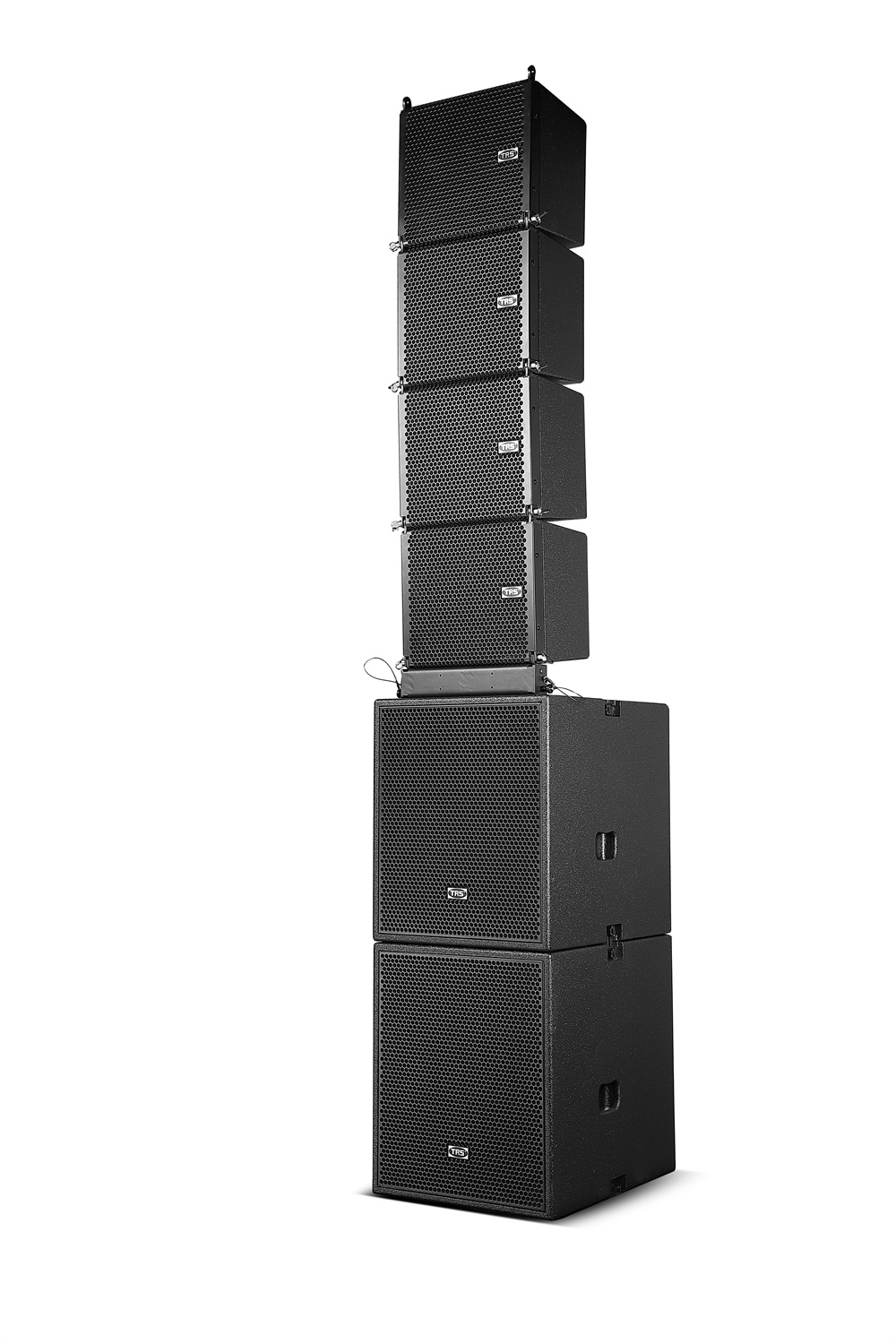

●Very sophisticated and simple hanging/stacking system

●Natural high-fidelity sound quality

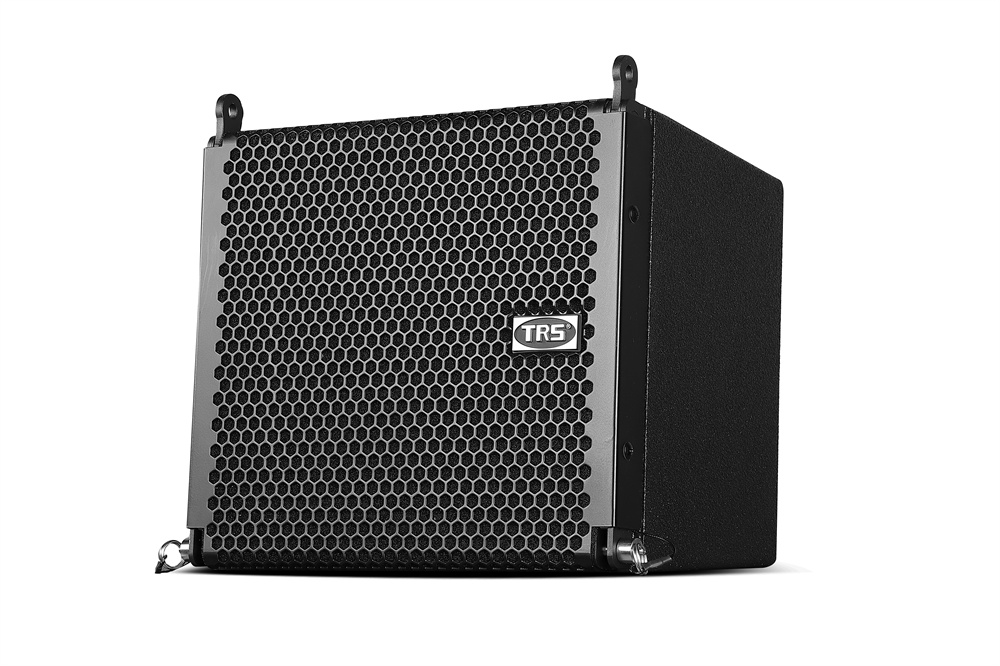

M5 Mini line array speaker

Design features: Pioneering installation of 2pcs 5-inch units and 1pc 1.75-inch high-frequency compression driver into a cabinet with a height of only 300mm and a width of 350mm. Strictly following the line array principle design, with extremely high efficiency to obtain an unprecedented sound pressure volume ratio, you can ensure your success and efficiency in countless activities, as the main expansion system for events and celebrations, or as a permanent installation in theaters, both can perform well.

Product model: M-5

Configuration: 2x5'' woofer, 1x1'' tweeter

Drive mode: Two-way single driver

Frequency response: 85Hz-18KHz

Horizontal coverage angle: 100°

Vertical coverage angle: 8°

Rated power: 300W AES

Maximum SPL: 125dB

Sensitivity: 99dB

Impedance: 8Ω

Dimensions(WxHxD): 330x325x275mm

Weight: 10kg

Product model: M-15B

Driver unit: 1x15" woofer

Drive mode: two-way single drive

Frequency response: 40Hz-300Hz

Rated power: 600W AES

Maximum SPL: 133dB

Sensitivity: 99dB

Impedance: 8Ω

Dimensions(WxHxD): 435x513x550mm

Weight: 30kg

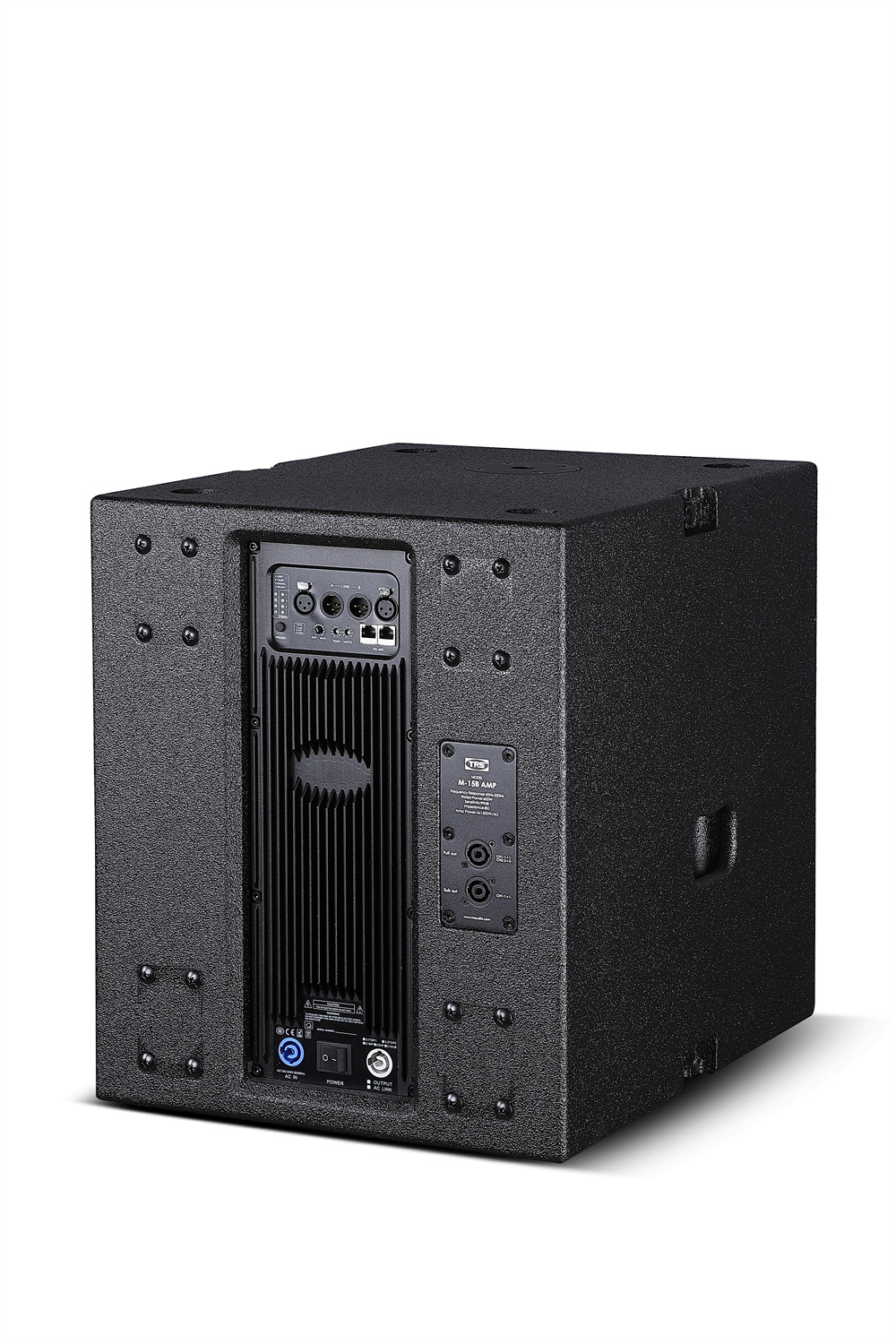

Model: M-15BAMP

Driver unit: 1x15’’ woofer

Drive mode: 4x1000W active module

Frequency response: 45Hz-300Hz

Rated power: 600W AES (4x1000W active module)

Maximum SPL: 130dB

Sensitivity: 99dB

Impedance: 8Ω

Dimensions(WxHxD): 435x513x550mm

Weight: 33kg
