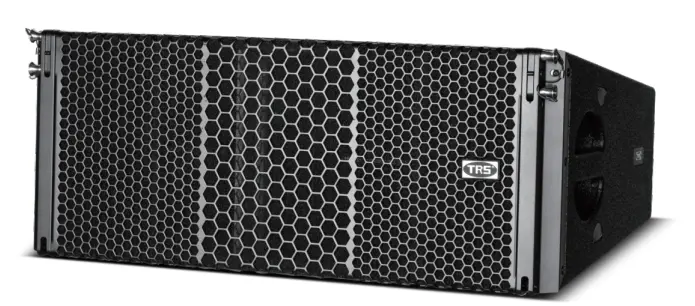

G-210 10-inch 2-way coaxial line array speaker
Features：
G-210 adopts a passive three-way coaxial line array speaker with high performance, high power and small size. It contains 2x10-inch low-frequency driver units. One 8-inch mid-frequency driver unit with a horn, and one 1.4-inch throat (75mm) coaxial high-frequency compression driver unit. The high-frequency compression driver unit is equipped with a dedicated waveguide device horn. The low-frequency driver units are arranged in a dipole symmetric distribution around the center of the enclosure. The mid and high-frequency components in a coaxial structure are installed at the center of the enclosure, which can ensure the smooth overlap of adjacent frequency bands in the design of the frequency division network. This design can form a 90° constant directivity coverage with excellent control effect, and the control lower limit extends to 250Hz. The enclosure is made of imported Russian birch plywood and coated with polyurea coating that is resistant to impact and wear. The front of the speaker is protected by a rigid metal grille.
Product Model: G-210
Type: Dual 10-inch coaxial three-way line array speaker
Configuration: LF: 2x10'' low-frequency units, MF: 1x8'' paper cone mid-frequency unit, HF: 1x3'' (75mm) compression coaxial unit
Rated Power: LF: 600W, MHF: 380W
Frequency Response: 65Hz - 18KHz
Sensitivity: 103dB
Maximum Sound Pressure Level: 134dB / 140dB (AES / PEAK)
Rated Impedance: 16Ω
Coverage Range (HxV): 90° x 14°
Input Interface: 2 Neutrik 4-core sockets
Dimensions (W * H * D): 760 * 310 * 470mm
Weight: 37.8 kg
G-210 10-inch 2-way coaxial line array speaker
G-210B adopts a high-performance, high-power ultra-low frequency speaker. A long-stroke 18-inch driver unit is installed in the cabinet with a bass reflex design. Combined with a large low-frequency vent, the G-210B can still achieve a very high sound pressure level despite its compact cabinet structure. The G-210B is integrated with hanging accessories and can be combined with the G-210 in various configurations, including ground stacking or hanging installation. The cabinet is made of imported Russian birch plywood and coated with a collision-resistant and wear-resistant polyurea coating. The front of the speaker is protected by a rigid metal grille.
Model: G-210B
Unit type: single 18-inch subwoofer;
Unit configuration: LF: 1x18'' woofer;
Rated power: 1000W;
Frequency response: 30Hz-200Hz;
Sensitivity: 100dB;
Maximum SPL: 130dB/136dB (AES/PEAK);
Rated impedance: 8Ω;
Input interface: 2 Neutrik4 core sockets;
Dimensions (W*H*D): 760*600*605mm;
Weight: 54.5kg;https://www.trsproaudio.com/line-array-speaker/
G-210B Single 18-inch line array subwoofer
