Features:

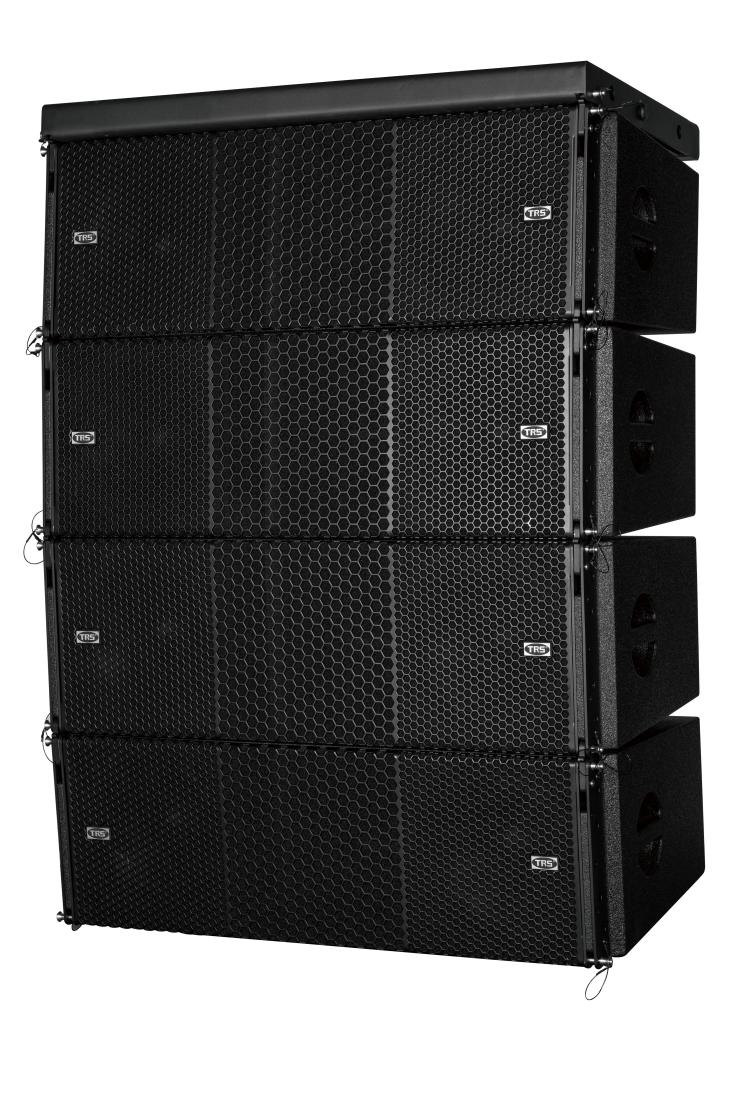

G-212 adopts a high-performance, high-power large three-way line array speaker. It contains 2x12-inch low-frequency driver units. There is one 10-inch mid-frequency driver unit with a horn, and two 1.4-inch throat (75mm) high-frequency compression driver units. The high-frequency compression driver units are equipped with a dedicated wave-guide device horn. The low-frequency driver units are arranged in a dipole symmetric distribution around the center of the cabinet. The mid and high-frequency components in a coaxial structure are installed at the center of the cabinet, which can ensure the smooth overlap of adjacent frequency bands in the design of the crossover network. This design can form a 90° constant directivity coverage with excellent control effect, and the control lower limit extends to 250Hz. The cabinet is made of imported Russian birch plywood and coated with a polyurea coating that is resistant to impact and wear. The front of the speaker is protected by a rigid metal grille.

Technical parameters:

Type: Dual 12-inch three-way line array speaker

Configuration: LF: 2x12'' low-frequency units,

MF: 1x10'' paper cone mid-frequency unit

HF: 2x3'' (75mm) compression coaxial units

Rated power: LF: 900W, MF: 380W, HF: 180W

Frequency response: 55Hz - 18KHz

Maximum sound pressure level: 136dB / 142dB (AES / PEAK)

Rated impedance: LF 6Ω / MF + HF 12Ω

Coverage range (HxV): 90° x 8°

Input interface: 2 Neutrik 4-core sockets

Dimensions (WxHxD): 1100 x 360 x 525mm

Weight: 63kg
