Advantages of Embedded Speakers

1.Embedded speakers are made with integrated modules. The traditional ones are made with a few power enlarge and filter circuits.

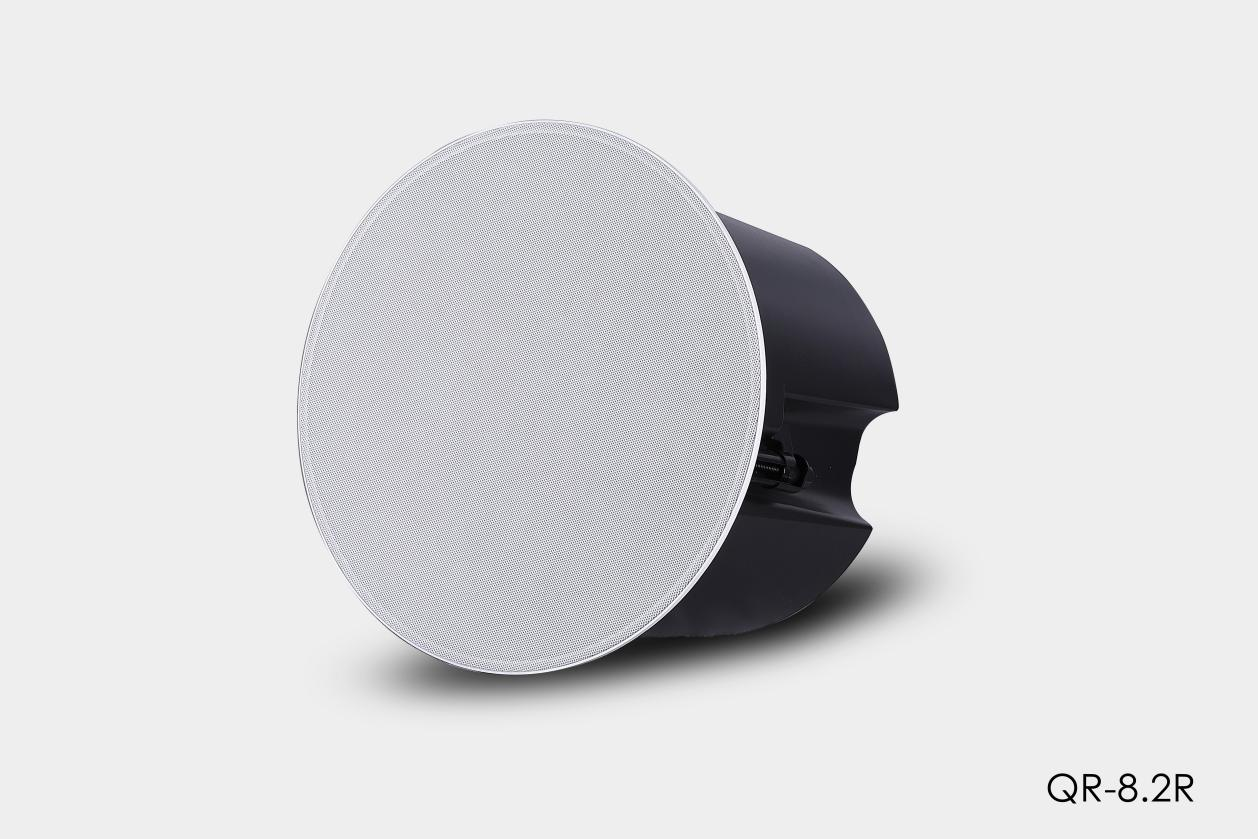

Embedded speakers
2. The embedded speakers’ woofer is characterized by a unique polymer-injected polymer material bionic treatment to form a flat-panel diaphragm with a three-dimensional disordered structure. The extremely light weight makes it possible to achieve good stability together with ideal internal losses and a high elastic modulus, which basically eliminates split oscillations.
3. The embedded speaker adopts a powerful drive system with a diameter of 80mm strontium ferrite aerospace magnet, an edge silver-copper clad aluminum winding voice coil, a high-linearity suspension and a high-strength frame, so that the woofer produces a deep sound. and high-level frequency response.
4. Recessed speaker This high-performance tweeter incorporates the excellent properties of titanium and silk, a lightweight, elastic material that provides smooth high-frequency required high power. Nerve lines and small horns allow for more precise high-frequency positioning and a softer tone.

Maximum sound pressure level
Model: QR-8.2R
Unit composition: LF: 8”x1, HF: 1”x2
Rated power: 120W
Recommended amplifier power: 150W
Impedance: 8Ω
Frequency range: 65Hz-21KHz
Sensitivity: 92dB
Maximum sound pressure level: 99dB
Box Material: Molded Plastic Components
Box surface mesh: white dust-proof iron mesh
Surface paint: environmentally friendly white matte paint
Product size( WxH): 280*220mm
Net weight: 3Kg
Hole size: 255mm
Applications: Cinema systems, conference rooms, offices, commercial music systems, reception rooms, churches, retail stores, shopping centers


Post time: Sep-23-2022
