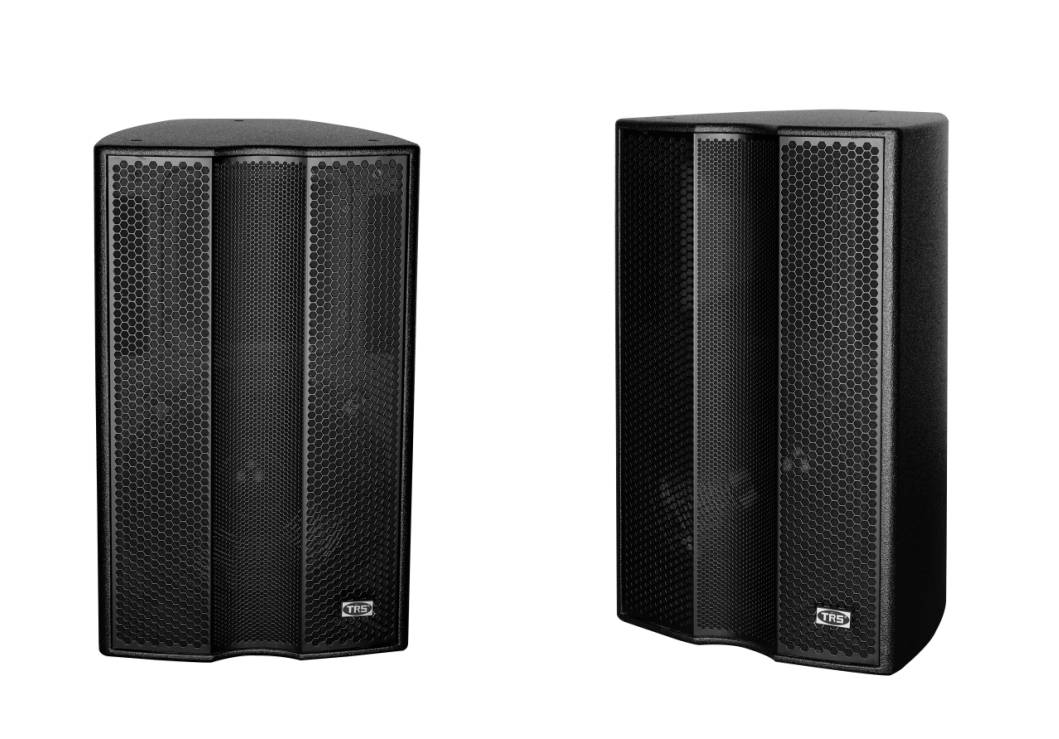

PD-15 Single 15-inch Entertainment Full Range Speaker
Features:
PD-15 is a multi-purpose two-way full-range speaker. The high-frequency driver unit is a precision high-frequency compression driver with a wide and smooth throat (3 voice coil diaphragm), and the low-frequency unit is a 15-inch paper plate high-performance low-frequency unit. The horn is designed horizontally and can be rotated, making the hanging and installation of the speaker simple and quick. The precise and compact appearance design greatly reduces the trouble caused by transportation and installation. The sound is transparent and clear, the human voice is loud, and the sense of space is very strong. It is mainly suitable for entertainment venues such as bars and slow rock bars. It is also the best choice for stage return listening speakers.
The cabinet structure adopts a trapezoidal design, which greatly reduces the resonance of standing waves in the box. The three-sided hanging point device and the bottom bracket matching design make the engineering installation very fast and flexible.
Technical parameters:
Product model: PD-15
Unit type: LF: 15-inch (100mm) voice coil neodymium woofer
HF: 3-inch (75mm) voice coil tweeter
Frequency response: 55Hz-18KHz
Rated power: 600W
Sensitivity: 99dB
Maximum sound pressure level: 128dB
Impedance: 8Ω
Standard coverage angle: 80°× 50°
Dimension (WxHxD): 460x753x463mm
Weight: 29.5kg

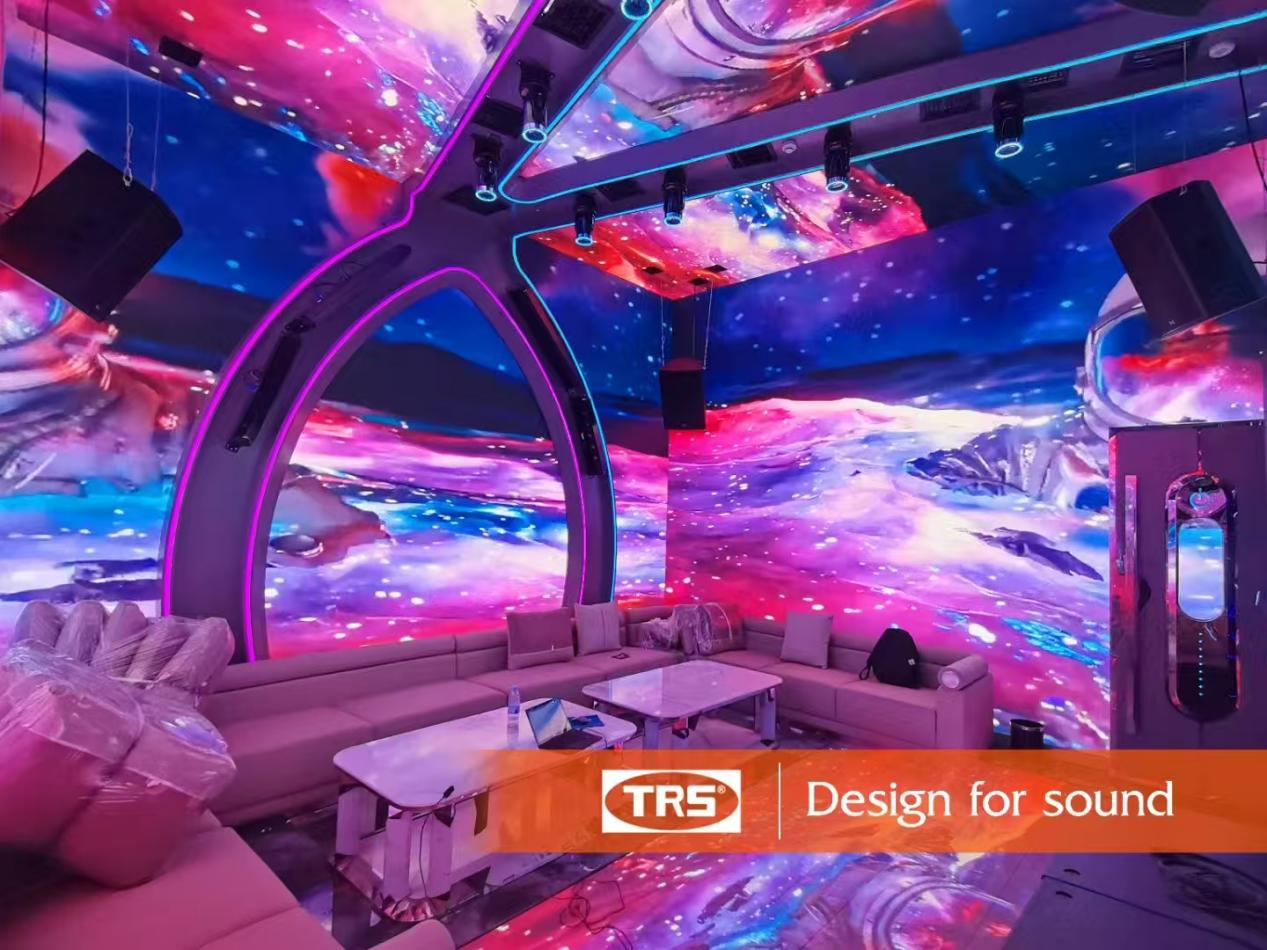

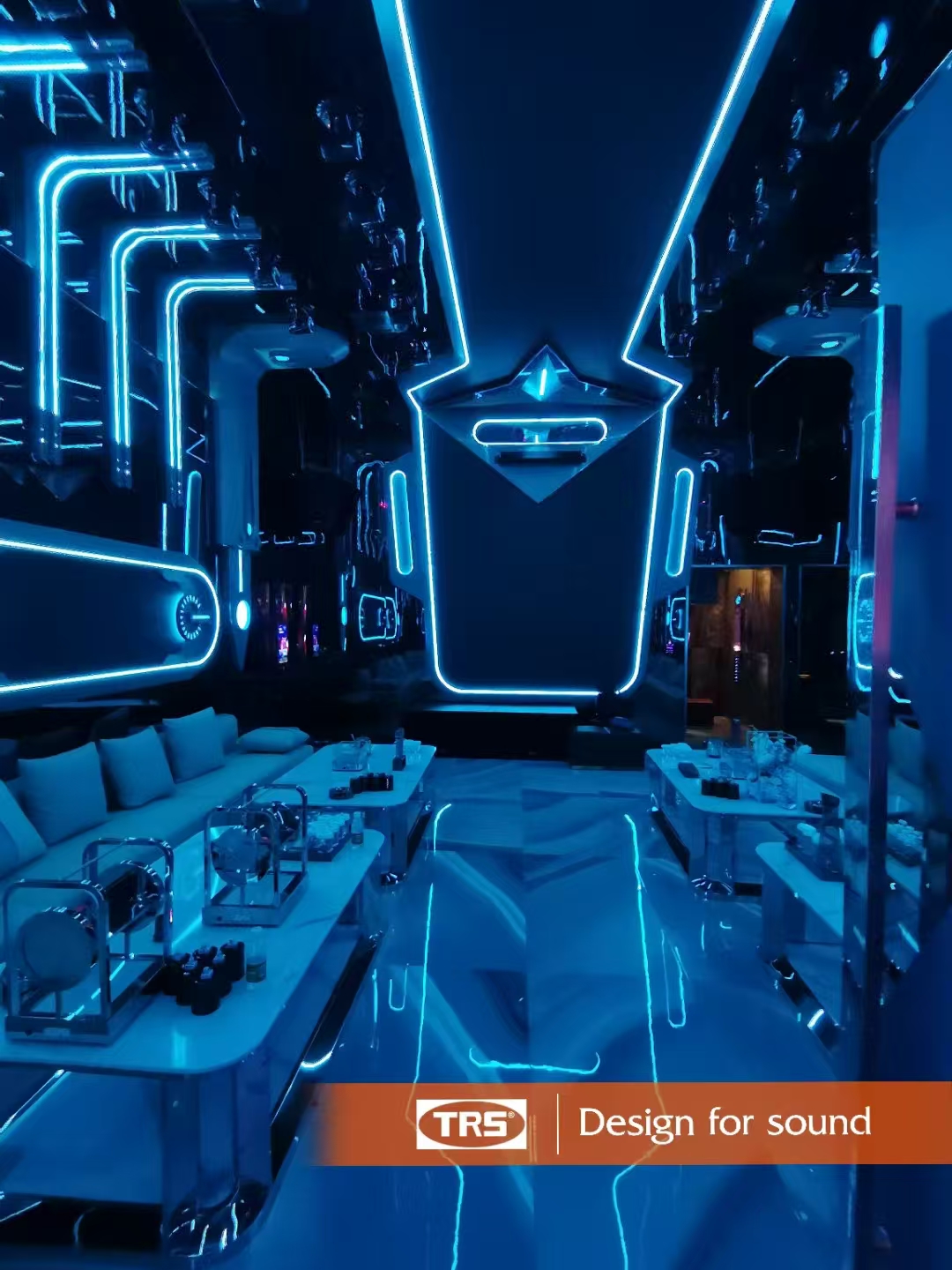

Application: Suitable for Live house,Party house,High-end Private Club and so on.....
Recommend power amplifier:

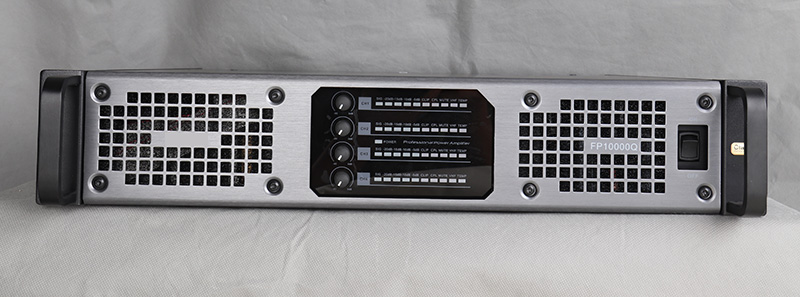

FP-10000Q -- 4 Channels Power Amplifier
Output power:8Ω stereo power: 4x1350W;
4Ω stereo power: 4x2100W;
2Ω stereo power: 4x2500W;
8Ω bridge power: 2x4200W;
4Ω bridge power: 2x5000W;
Connect tips: 1 Channel for running 1pc PD-15
